CNCPDB-4 Axis CNC power distribution board

Tadas Mitkus
Oct 15, 2021
1 min read

CNCPDB - CNC power distribution board

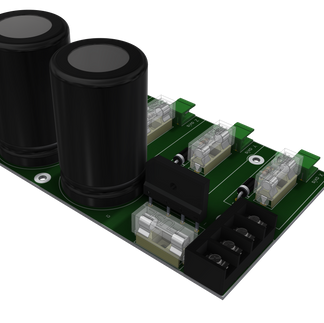

I have designed and built an AC to DC power board for CNC machine builds.

With this board, installation and connection to the stepper drivers are very easy and quick to do. The board has individual outputs for a dedicated axis and the LEDs are showing what (if) outputs are "alive". All axis outputs are fused (5A fast fuses are used to protect the circuit).
