3 axis CNC machine - C190

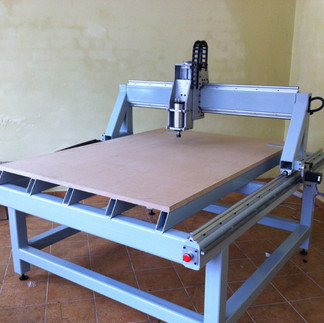

3 axis CNC router machine - engineered, designed, and manufactured by me.

The task was to engineer and design an easy manufacturable 3 axis CNC router machine with the main design criteria like high accuracy; fast rapid moves; high cutting speeds; easy tool changing; long time operation; optimal table size.

* Water-cooled spindle motor 2.2Kw

* Cutting area 1900 x 1200 x 150

* Very rigid carbon steel/aluminum construction

* Rapid speeds of 65 m/min

* Cutting speeds of 50 m/min

* Automatic Tool Length Measurement

* Semi-Auto tool change

* Easily accessible machine control box (built-in PC)

* Repeatability: +/- 0.025mm

* Positional accuracy of +/- 0.10mm

* Rack-and-pinion power transmission on X and Y-axis

* Ballscew power transmission on Z-axis

* Control software: MACH3
